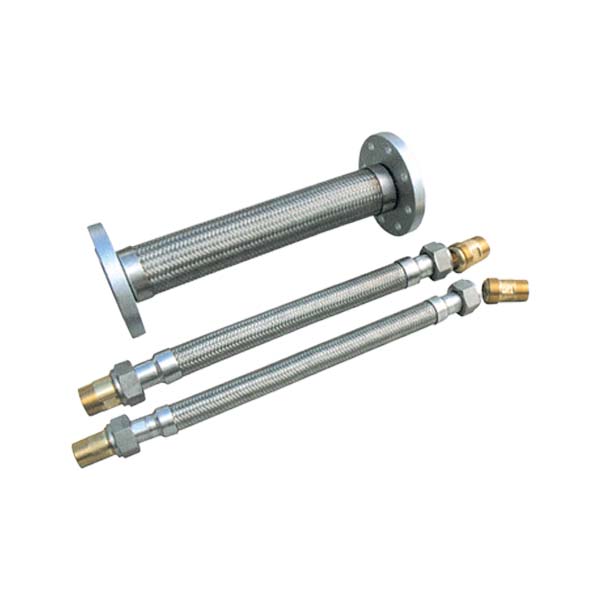

Metal Soft Tube

Short Description:

Structural characteristics
1、The whole metal hose is made of stainless steel, which has strong Corrosion resistance.
2, the hose body for the thin-walled stainless steel tube body hydraulic, rotary molding, with strong flexibility, expansion and contraction, bending and shock resistance, braided mesh sleeve to strengthen the protection, so that its pressure resistance is high.Enhanced protection of the braided mesh cover, so that its pressure resistance is high.
3、The connection of both ends of the hose is configured with a variety of interface forms for easy connection and use (see the following chart), and can also be connected with quick-change couplings in this manual.
4、The product is not only suitable for rotary joints, but also widely used in a variety of fluid and medium transportation of disturbing connections.

Send email to us Download To PDF

Detail

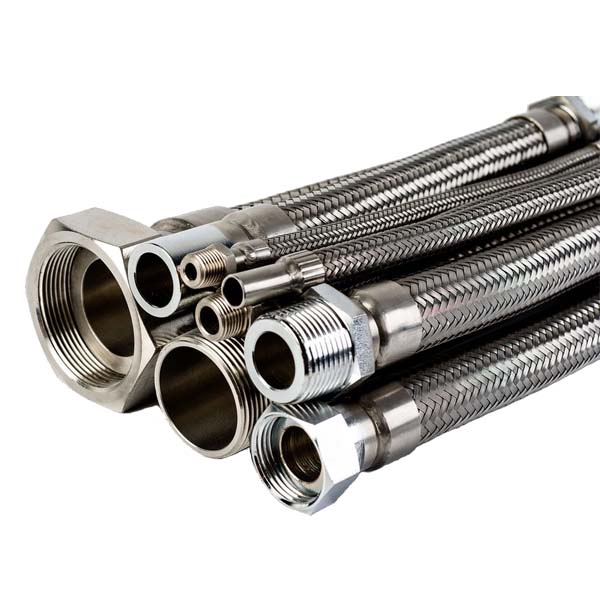

common interface

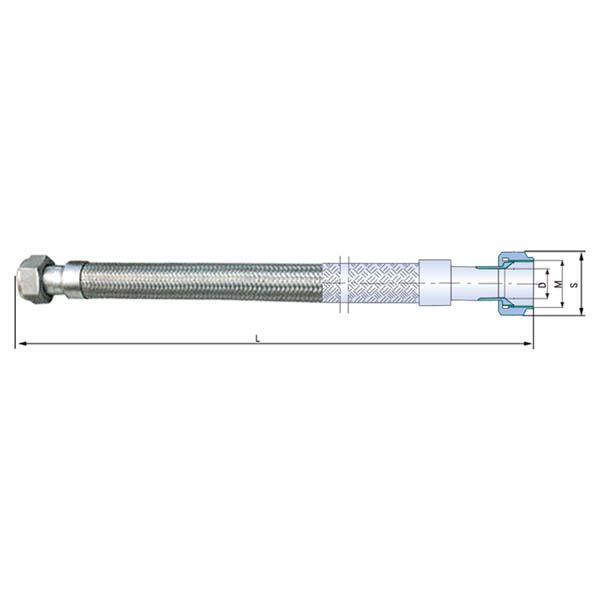

Specification	model	Pressure Mpa	Design Mpa	Minimum Bend Radius		d	Thread Size		L	note
Specification	model	Pressure Mpa	Design Mpa	Static	dynamic	d	M	S	L	note
6	RL6	2.5	3.7	40	80	4	14×1 .5	17	This size is usually 500 mm, but can also be customized.	Generally, flange connection is used for hoses over φ40, and screw connection is used for hoses under φ40.
8	RL8	2.5	3.7	50	110	6	16×1 .5	19
10	RL10	2.5	3.7	65	145	7	18×1 .5	24
12	RL12	1.6	2.4	70	160	9	20×1 .5	24
14	RL14	1.6	2.4	75	175	11	22×1 .5	27
15	RL15	1.6	2.4	80	180	12	24×1 .5	30
16	RL16	1.6	2.4	85	210	13	27×1 .5	32
18	RL18	1.6	2.4	110	220	15	30×1 .5	36
20	RL20	1.6	2.4	120	270	16	33×2	38
22	RL22	1.6	2.4	135	320	18	36×2	40
25	RL25	1.6	2.4	160	360	21	39×2	45
30	RL30	1.6	2.4	170	390	25	42×2	50
32	RL32	1.6	2.4	175	400	28	48×2	55
38	RL38	1.6	2.4	200	480	34	56×2	64
40	RL40	1.6	2.4	225	510	37	58×2	68
42	RL42	1.6	2.4	250	550	37	60×2	68
48	RL48	1.6	2.4	270	600	43	68×2	76

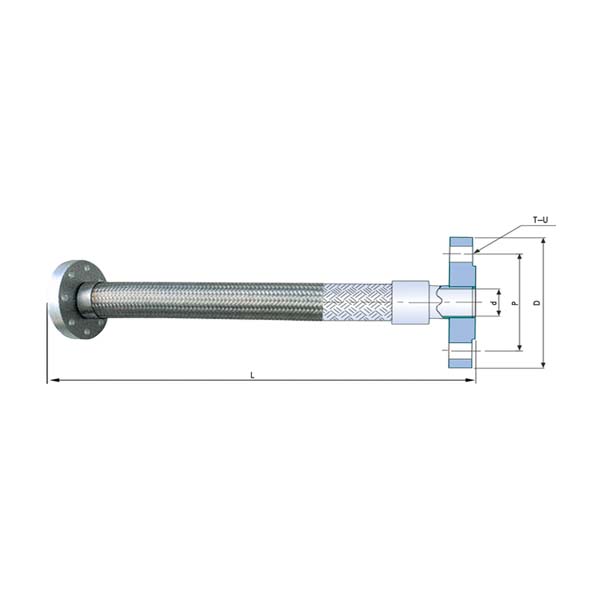

Specification	model	Pressure Mpa	Design Mpa	Minimum Bend Radius		d		Thread Size					L	note
Specification	model	Pressure Mpa	Design Mpa	Static	dynamic	Q		P	T	U
10	RF10	2.5	3.7	65	145	7	90		60	4	14	This size is usually 500 mm, but can also be customized.		Generally, flange connection is used for hoses over φ40, and screw connection is used for hoses under φ40.
12	RF12	1.6	2.4	70	160	9	95		65	4	14
14	RF14	1.6	2.4	75	175	11	95		65	4	14
15	RF15	1.6	2.4	80	180	12	95		65	4	14
16	RF16	1.6	2.4	85	210	13	105		75	4	14
18	RF18	1.6	2.4	110	220	15	105		75	4	14
20	RF20	1.6	2.4	120	270	16	105		75	4	14
22	RF22	1.6	2.4	135	320	18	105		75	4	14
25	RF25	1.6	2.4	160	360	21	115		85	4	14
30	RF30	1.6	2.4	170	390	25	115		85	4	18
32	RF32	1.6	2.4	175	400	28	140		100	4	18
38	RF38	1.6	2.4	200	480	34	150		110	4	18
40	RF40	1.6	2.4	225	510	37	150		110	4	18
42	RF42	1.6	2.4	250	550	37	150		110	4	18
48	RF48	1.6	2.4	270	600	43	165		125	4	18
50	RF50	1.2	1.8	280	640	45	165		125	8	18
65	RF65	1.2	1.8	360	700	65	185		145	8	18
75	RF75	1.2	1.8	520	860	70	200		160	8	18
100	RF100	1.2	1.8	610	1350	94	220		180	8	18
